ATmega2560 Development Board
About the Development Board
SmartElex ATMEGA2560 Development Board is a powerful development platform based on ATMEGA2560 micro-controller which is one of the most feature-rich AVR micro-controllers from Atmel, featuring 256K Flash, 8K RAM, 86 I/O lines arranged in nine 8 bit ports, 16 ADCs, 4 UARTs, 6 timers, 8 interrupts and much more. This board is ideal for developing embedded applications involving high-speed wireless communication, USB-based data logging, real-time data monitoring, and control etc.
- Board Name: SmartElex ATmega2560 Development Board
- Microcontroller: ATMEGA2560 with 16 MHz crystal with On-Board USBASP Programmer
- Power: 7 to 15 VDC with Reverse Polarity Protection
- 2.4GHz ZigBee (XBee) wireless module adaptor
- 2×16 Character Alphanumeric LCD
- SD cardholder
- CH340G USB to Serial converter
- ESP8255 Adaptor interface with USB to Serial Converter
- Connector for 2 servo motors
- DS1307 based Real-Time Clock with Battery Backup
- ULN2003 7 channel 500mA driver
- L293D 600mA Dual DC motor Driver
- 1 Analog Potentiometers, 8 switches, 8 LEDs, Buzzer
- Switches: Reset, Power (ON-OFF SWITCH)
- Male Burg Pin Connectors for all ports

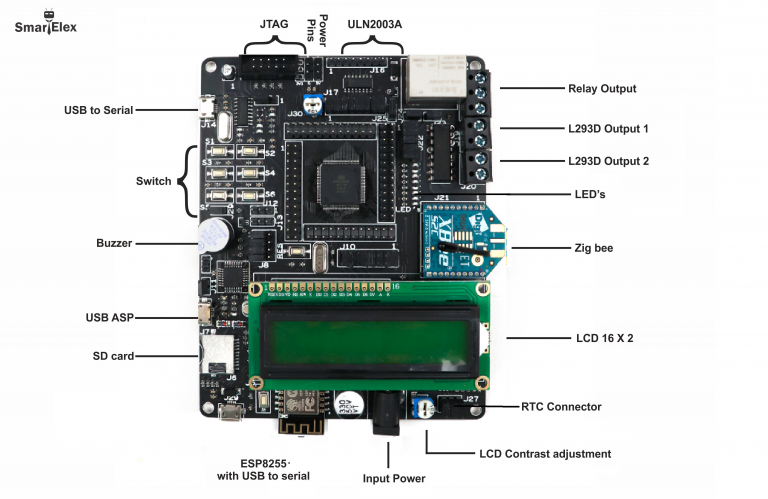

The following image shows the components of Development Board:
The following table shows the specifications of the Development Board:

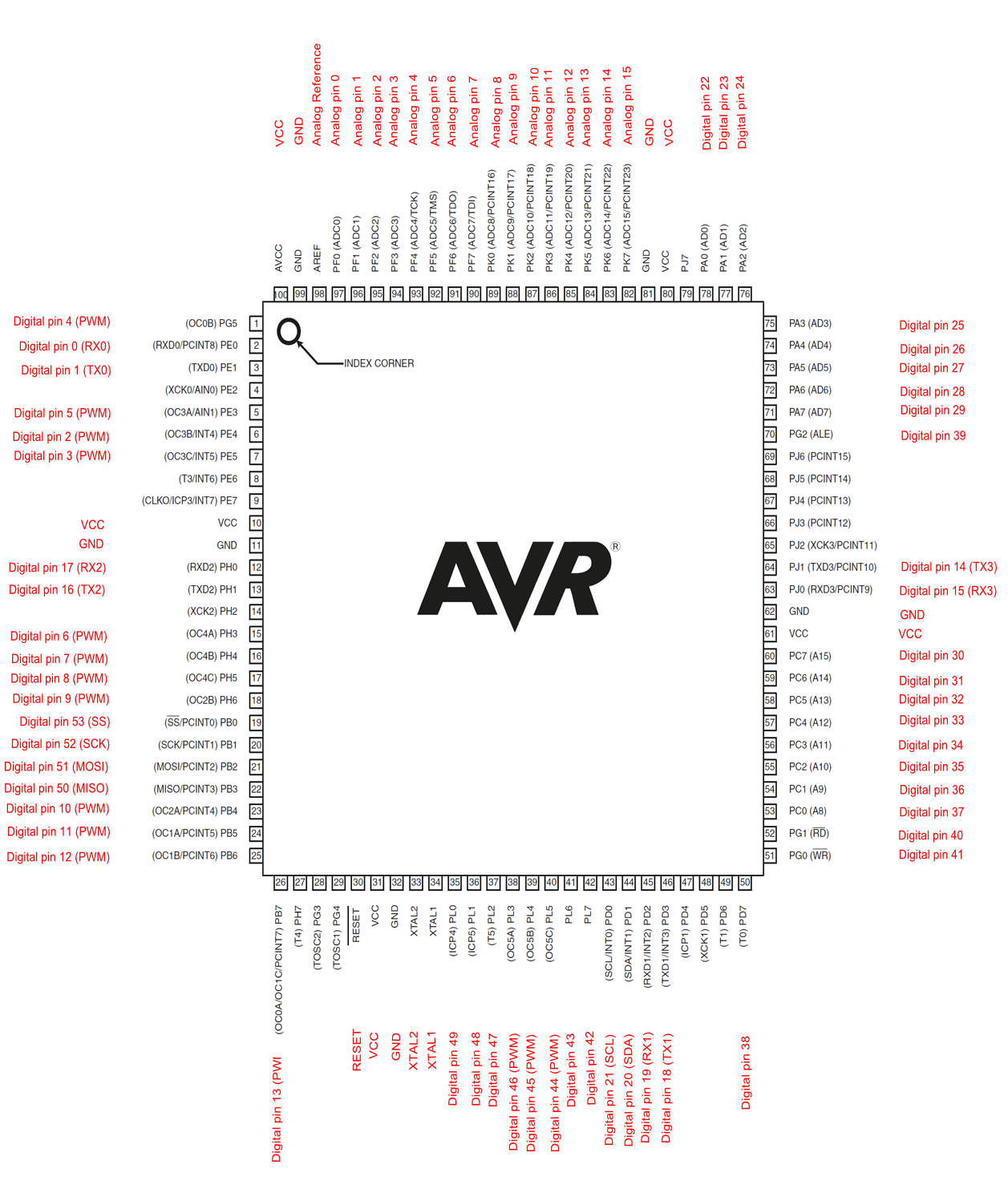

The following diagram shows the pinout of ATmega2560 microcontroller.

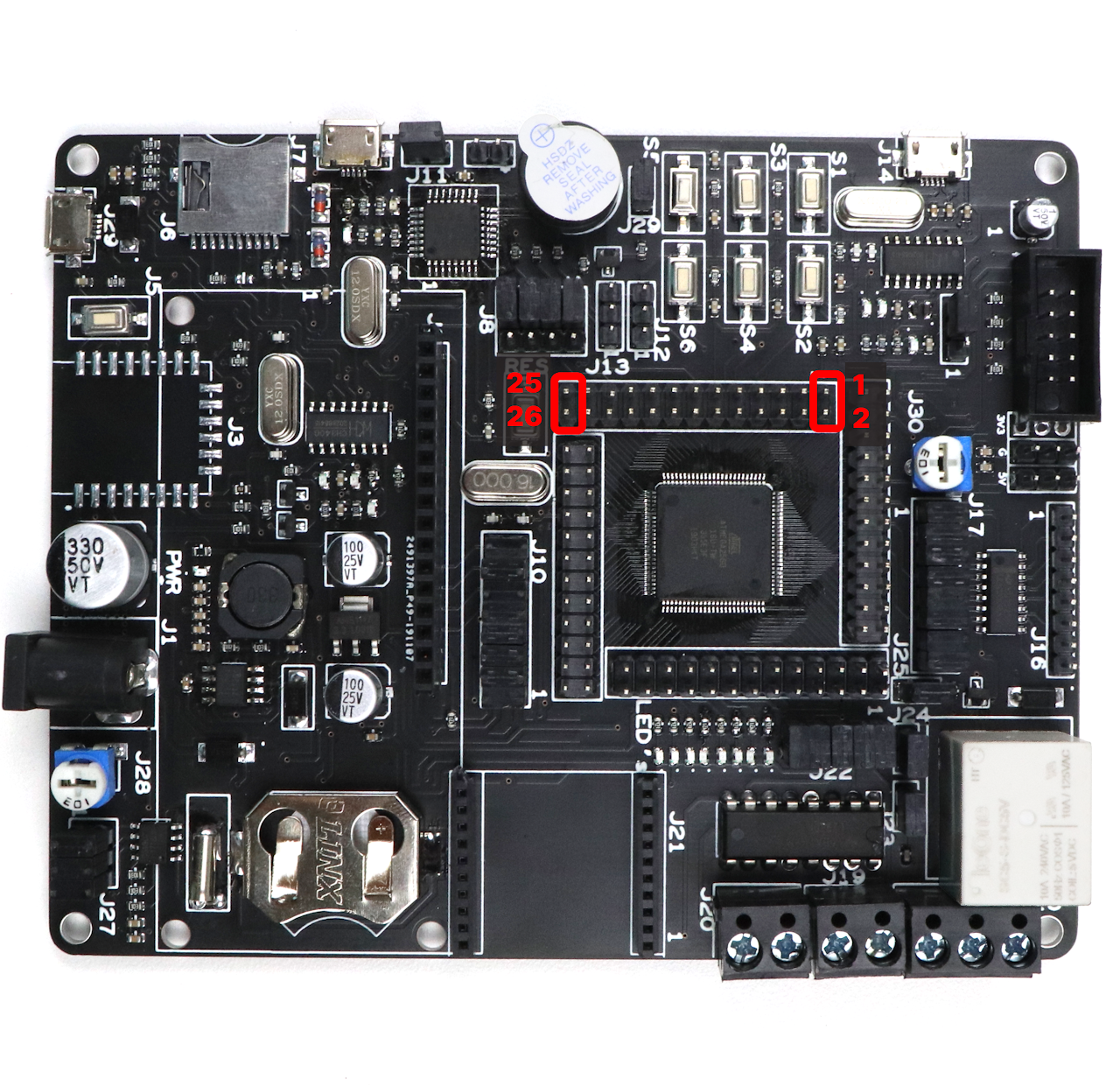

The following table shows the external pin diagram of the Development Board:
