Raspberry-Pi
About the board
- Powered by a 64-bit quad-core ARM Cortex-A53 CPU running at 1.4 GHz.
- Features 1GB of LPDDR2 RAM for smooth multitasking and running applications.
- Includes built-in 2.4 GHz and 5 GHz IEEE 802.11ac wireless LAN for fast Wi-Fi connectivity.
- Equipped with a 10/100/1000 Ethernet port for wired networking.
- Supports Bluetooth 4.2/BLE for wireless communication.
- Offers four USB 2.0 ports for connecting peripherals.
- Uses a microSD card for storage, providing flexibility in capacity and operating system choices.
- Provides full-size HDMI and composite video ports for display connectivity.
- Supports HD video playback (1080p) and includes a 3.5mm audio jack for audio output.

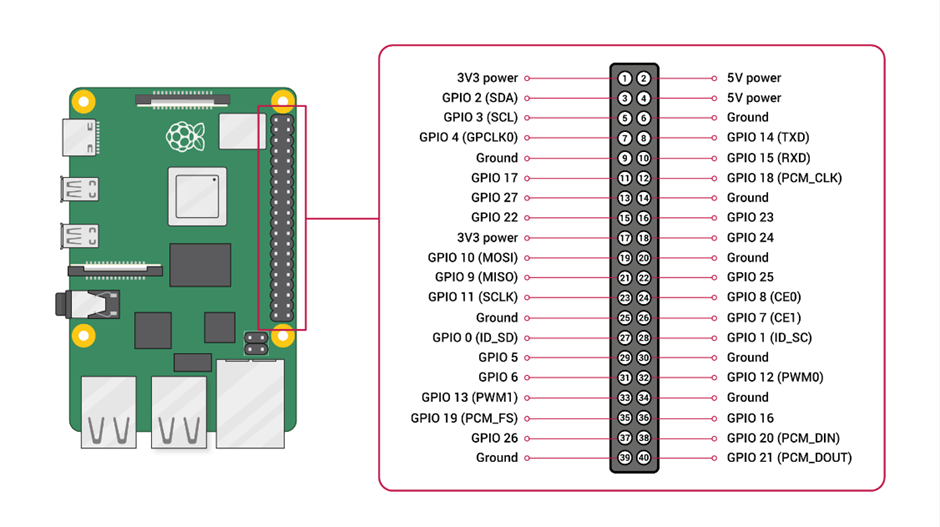

- Features a 40-pin GPIO header for interfacing with electronic components.
- Compatible with various operating systems, including Raspberry Pi OS, Ubuntu, and other Linux distributions.
- Can also run Windows 10 IoT Core.
- Powered by a 5V micro USB power supply (2.5A or higher recommended).
- Widely adopted in educational settings and popular among hobbyists and makers for diverse projects such as home automation, media centers, robotics, or IoT projects.
